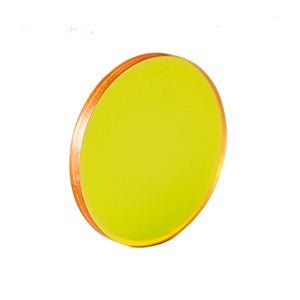

CO₂ Laser ZnSe Beam Combiner Window – High Transmission 10.6µm Optic
Important: This is a custom component and may require additional manufacturing lead time. Please contact American Photonics prior to ordering if your project has a required delivery date so we can verify current availability.
The American Photonics ZnSe Beam Combiner Window is a precision optical component designed to combine a visible red alignment laser with an invisible CO₂ laser beam. Mounted at a 45° angle, this optic transmits approximately 99% of the 10.6µm CO₂ laser beam while reflecting more than 80% of the visible red alignment beam, allowing accurate beam positioning without sacrificing cutting or engraving performance.
Product Overview
Improve laser alignment and increase operator confidence with a premium ZnSe Beam Combiner Window from American Photonics.
Beam combiners are flat optical windows specifically coated to transmit the infrared CO₂ laser wavelength while reflecting the visible red alignment laser. When installed correctly at a 45° angle of incidence, the beam combiner allows the red aiming beam to follow the same optical path as the cutting beam, making setup and positioning faster and more accurate.
Manufactured from premium Zinc Selenide (ZnSe), this optic is engineered for excellent infrared transmission while maintaining high visible-light reflectivity.
Key Features & Benefits
- Transmits approximately 99% of the 10.6µm CO₂ laser beam
- Reflects over 80% of the visible red alignment laser
- Designed for installation at a 45° angle of incidence
- Improves laser alignment and positioning accuracy
- Premium laser-grade ZnSe optical material
- Ideal for CO₂ laser engraving and cutting systems
Applications
Ideal for:
- CO₂ laser beam alignment
- Red dot laser integration
- Laser engraving systems
- Laser cutting machines
- Industrial CO₂ laser equipment
- OEM laser system upgrades
Installation Guidelines
Proper installation is critical for maximum optical performance.
- Install the beam combiner at a 45° angle relative to the laser beam path.
- Ensure the optic is clean before installation.
- Handle only by the edges using clean gloves or optical handling tools.
- Avoid fingerprints, dust, and contaminants on optical surfaces.
Important Handling Notice
ZnSe is a relatively soft optical material and should be handled with extreme care.
Excessive clamping pressure can:
- Distort the crystal structure
- Increase optical reflection losses
- Cause beam distortion
- Create localized overheating
- Reduce optic life
Installation Recommendation:
Tighten the retaining ring only until the optic no longer moves inside the holder. Do not overtighten.
Frequently Asked Questions
What is a beam combiner?
A beam combiner is an optical window that combines a visible red alignment laser with the invisible CO₂ laser beam, allowing both beams to follow the same optical path.
Why is a beam combiner installed at 45°?
The optical coatings are designed to perform at a 45° angle of incidence, transmitting the infrared CO₂ beam while reflecting the visible red laser.
How much CO₂ laser power passes through the beam combiner?
When properly installed, the beam combiner transmits approximately 99% of the 10.6µm CO₂ laser beam.
How much of the red alignment laser is reflected?
The beam combiner reflects more than 80% of the visible red laser, making beam alignment easier to see.
Can I overtighten the optic?
No. Overtightening can damage the ZnSe crystal, distort the laser beam, and shorten the optic's service life. Tighten only enough to prevent movement within the holder.
How should I clean a ZnSe beam combiner?
Use approved optical cleaning supplies, lint-free lens tissue, and high-purity isopropyl alcohol or a dedicated optical cleaner. Avoid abrasive materials or excessive pressure during cleaning.
Important: This is a custom optical component and may require additional manufacturing lead time. Please contact American Photonics prior to ordering if your project has a required delivery date so we can verify current availability.
American Photonics can help you with all your Infrared Optics needs.
Email our sales team for support and information:
Email: sales@americanphotonic.com
