American Photonics  |  SKU: LS-1623-38.1FL

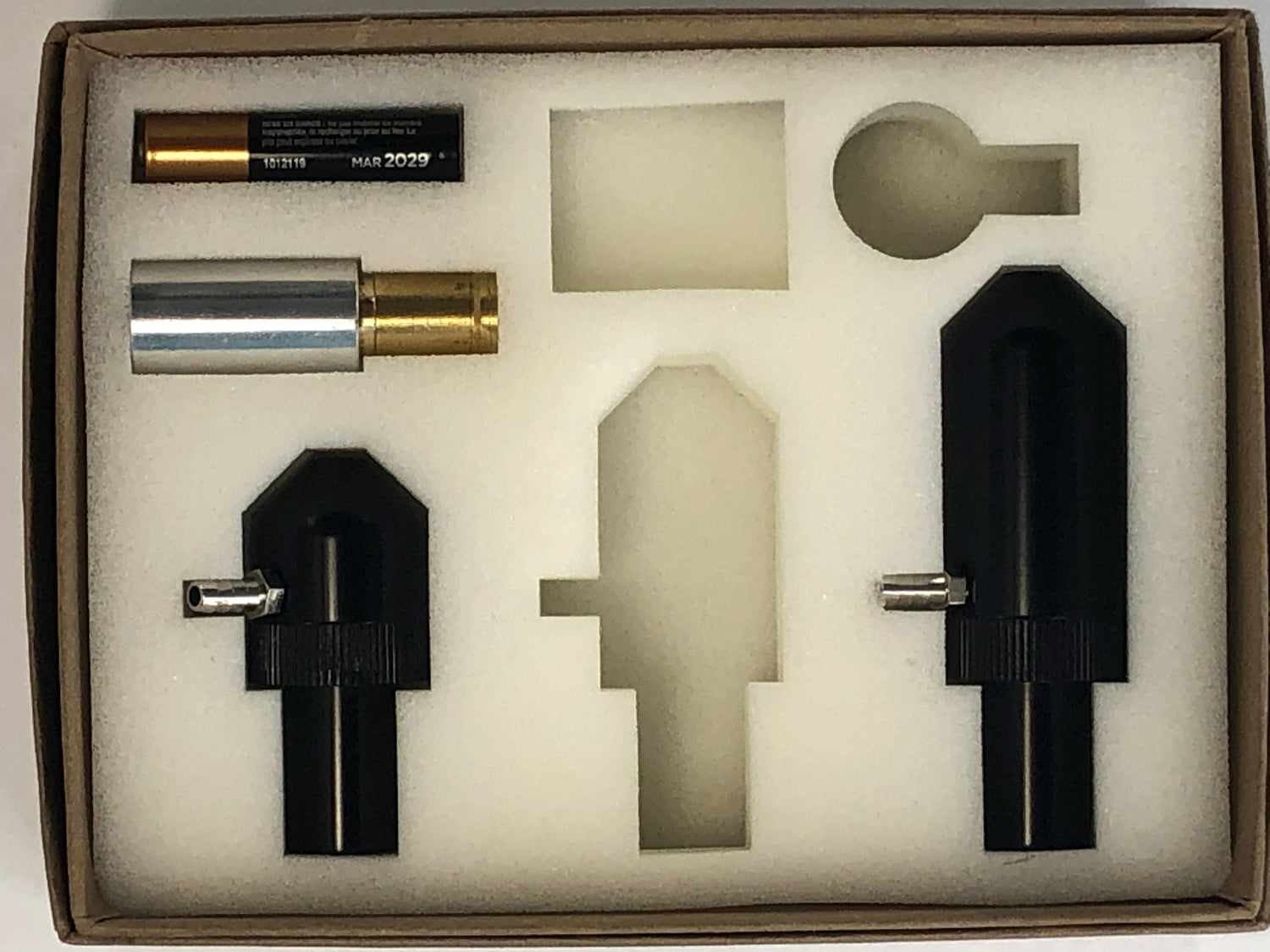

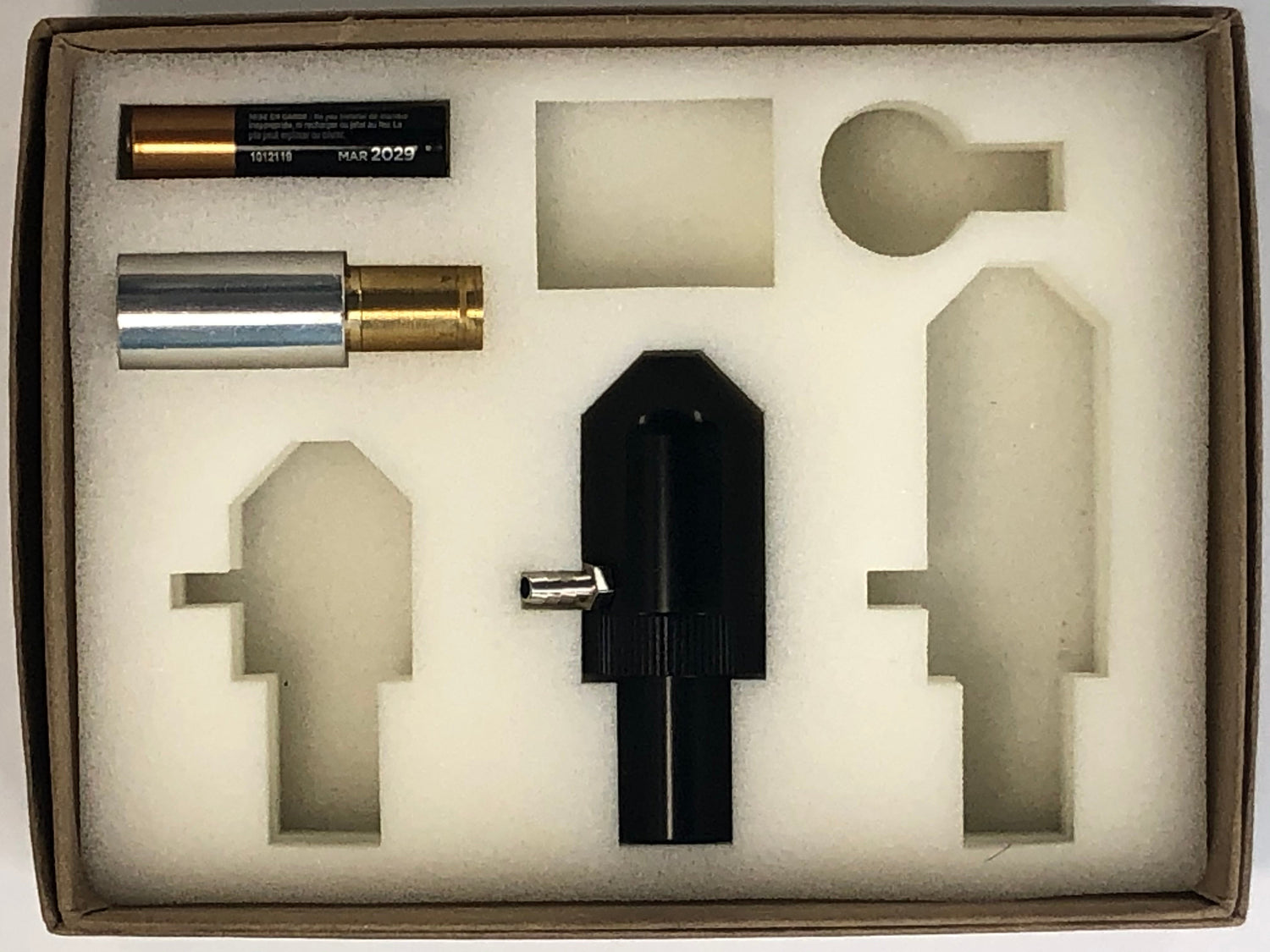

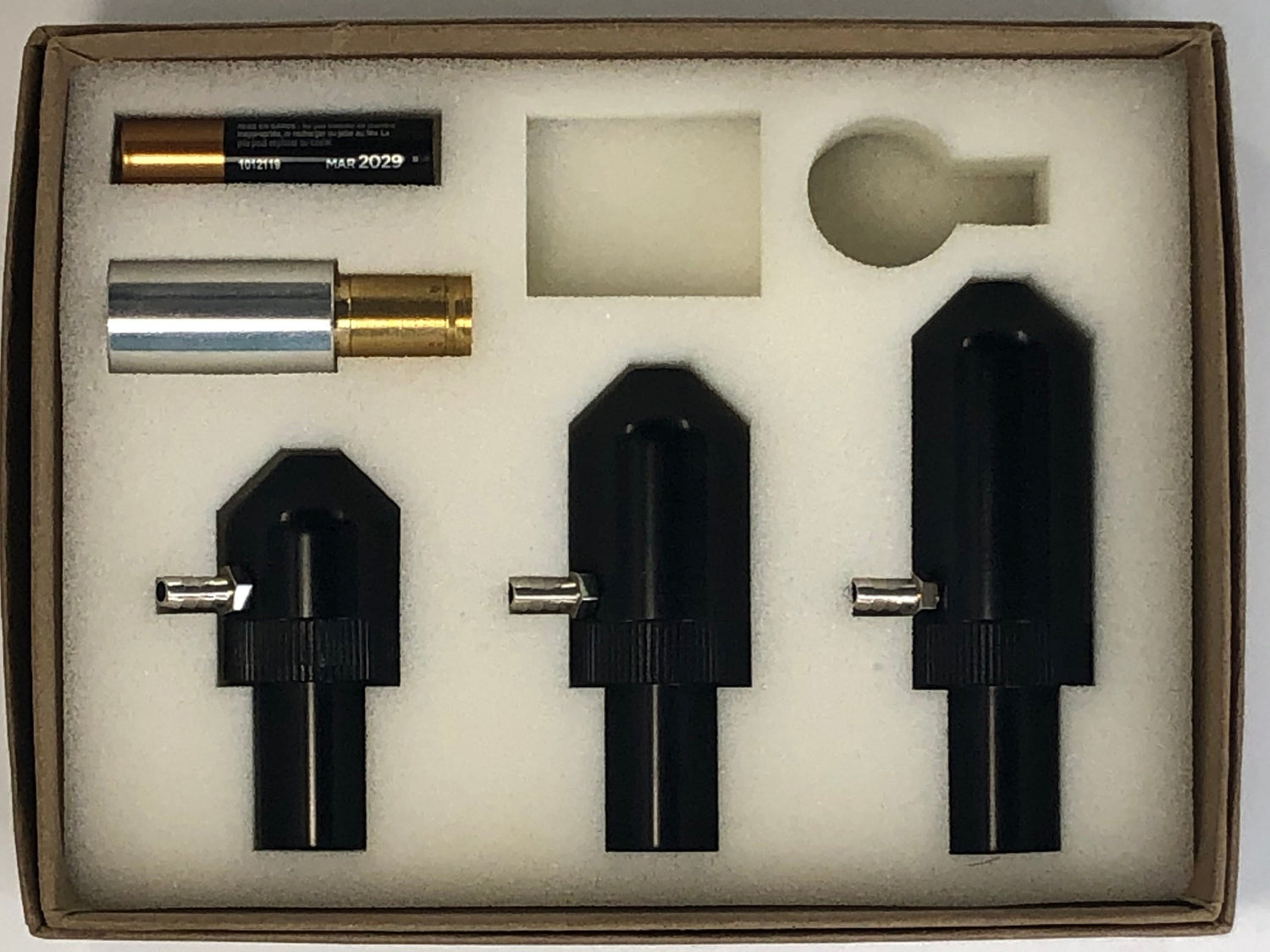

16mm diameter lens tubes with ZnSe focus lens or lens kits with Alignment Tool

Shipping calculated at checkout.

Focal length

Care information

High care information about CO2 laser lenses, fiber laser protective windows, and
fiber laser lenses is essential to ensure the optimal performance and longevity
of these critical components in laser systems. Here are some key points to consider:

CO2 Laser Lenses:

Regularly clean CO2 laser lenses to remove dust, debris, and residue. Use a
soft, lint-free cloth or lens cleaning tissue. Avoid using abrasive materials
that may scratch the lens.

Always handle CO2 lenses with clean hands or lint-free gloves to avoid transferring oils or contaminants onto the lens surface.

Store lenses in a clean, dry, and dust-free environment to prevent damage and
maintain their integrity.

Properly align CO2 lenses within the laser system to ensure efficient laser
beam delivery and focus.

Regularly inspect lenses for signs of damage, scratches, or deterioration.
Replace any damaged or worn lenses promptly.

Laser Protective Windows:

Clean fiber laser protective windows with care to avoid scratches. Use a gentle
cleaning solution and a soft, lint-free cloth.

Keep protective windows in place when the laser system is not in use to prevent
contamination and damage.

If protective windows become damaged, replace them immediately to maintain
laser system safety and performance.

Fiber Laser Lenses:

Clean fiber laser lenses carefully to prevent damage. Use a lens cleaning
solution and a soft, lint-free cloth or lens tissue.

Handle fiber laser lenses with care to avoid fingerprints, oils, or scratches
on the lens surface.

Properly align fiber laser lenses to ensure accurate laser beam focusing and
efficient performance.

Regularly inspect fiber laser lenses for signs of wear, damage, or contamination. Replace any compromised lenses promptly.

Environmental Considerations: Be mindful of environmental factors such as temperature and
humidity, as extreme conditions may affect lens performance.

maintaining high care and attention to detail when handling, cleaning, and
storing CO2 laser lenses, fiber laser protective windows, and fiber laser
lenses will enhance their longevity and contribute to the smooth and reliable
operation of your laser systems. Always follow the manufacturer's guidelines
and best practices for each specific component to ensure optimal results.

Delivery and Shipping


Orders placed before 2:00 pm EST/EDT on a business day
(Monday - Friday) will ship the same day.
Orders placed after 2:00 pm EST/EDT may not be be shipped
until the next business day.

Our business hours are Monday to Friday, 9 am-4:30 pm.

Orders placed after business hours will not be processed
until the next business day.

Orders placed during the weekend (Saturday - Sunday) or
holiday will be shipped on the next business day.

All packages are shipped FOB ORIGIN – These shipping terms
are characteristic of a “SHIPMENT CONTRACT” and the seller bears the expense
and risk of putting the goods in the possession of the carrier. Title transfers to the buyer at the point when the goods leave the shipper’s loading dock but reverts back to the seller if the buyer follows the correct procedures of notifying the seller of “breach” by “rightfully revoking cceptance.” Even if “breach” has occurred, the buyer remains responsible for filing “carrier loss

Where Precision Meets Quality: Buy with Confidence.
Our CNC Fabrication and ISO Certified Excellence Ensure the Best Product at the Best Price.

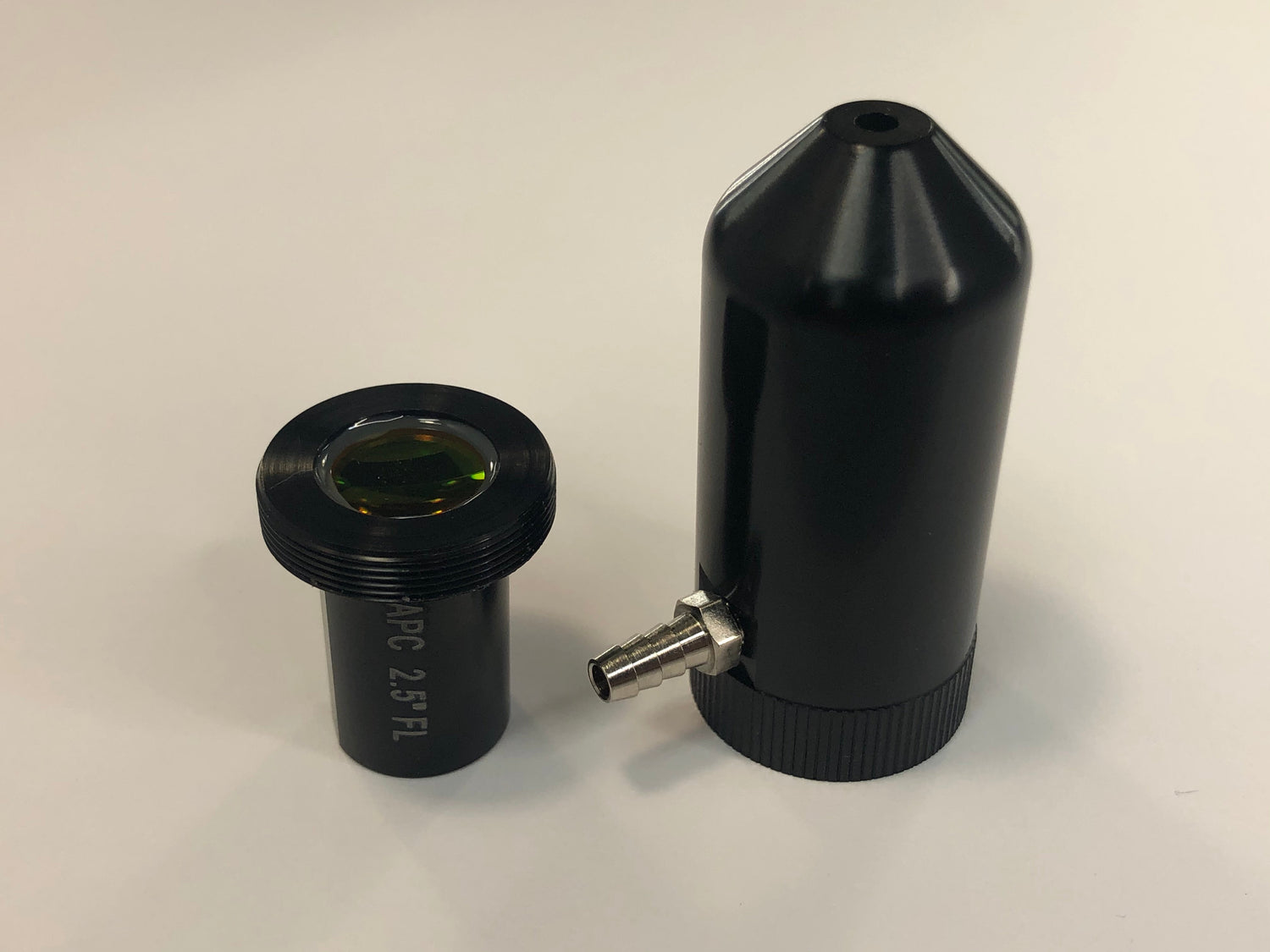

American Photonics - 16mm diameter lens tubes with ZnSe focus lens or lens kits with Alignment Tool

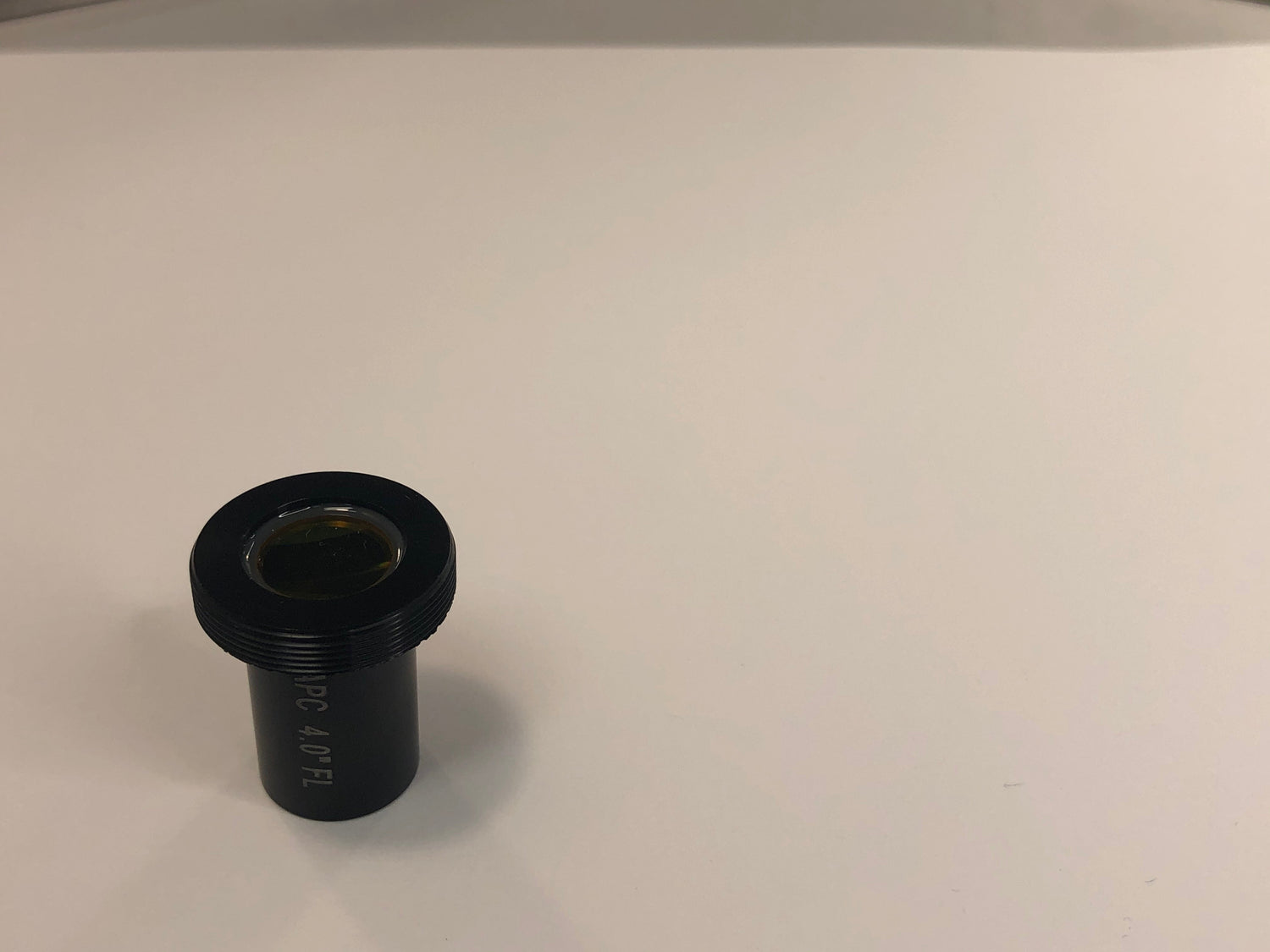

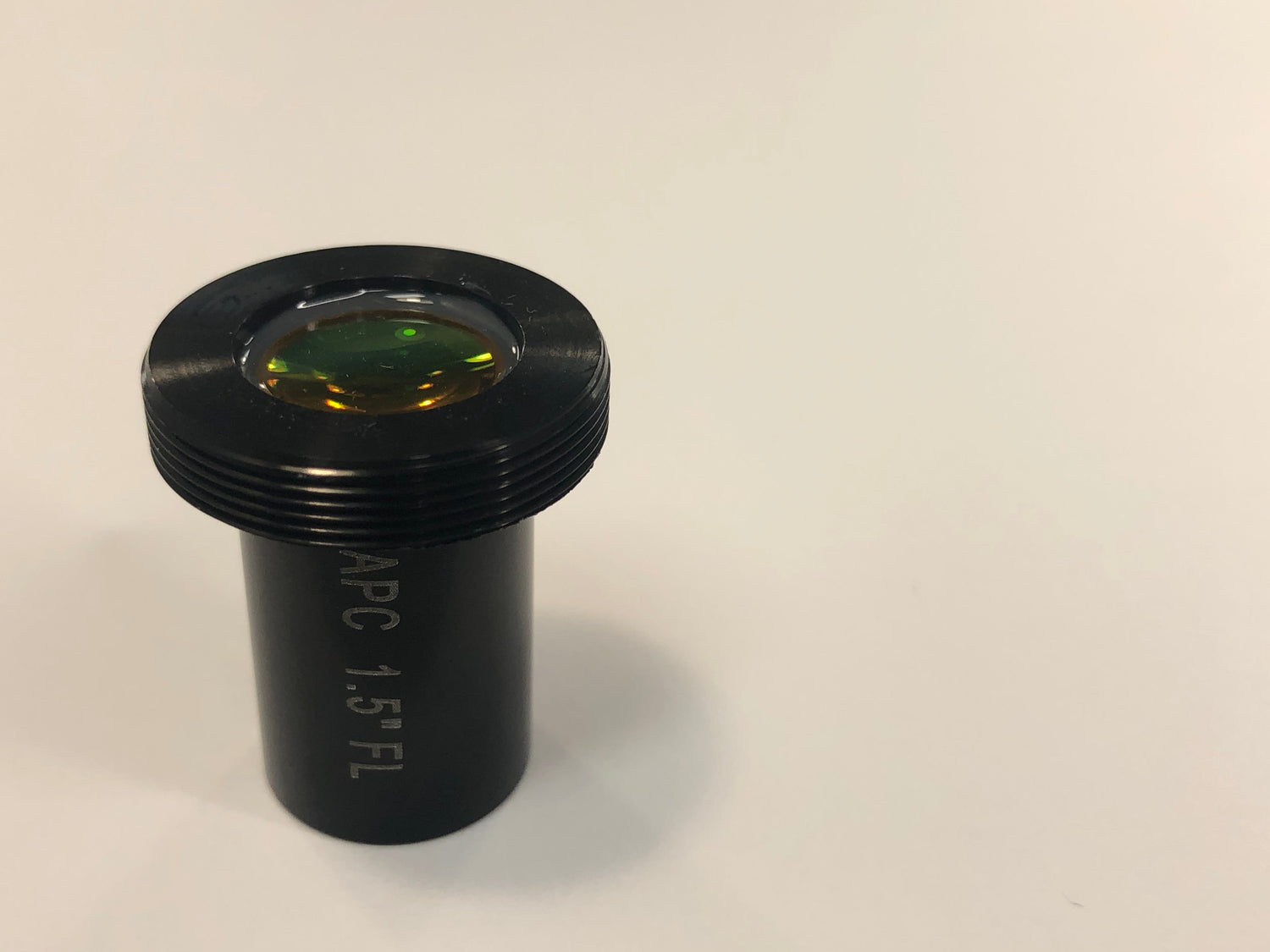

🌟 Introducing the 16mm Glued Lens Tubes for Cloudray K Type Heads 🌟

Overview: Upgrade your laser machine with our 16mm diameter glued lens tubes, specifically designed for Cloudray K type heads. Not only are these tubes easy to clean, but they also provide stress-free optical focusing. Choose from a variety of focal lengths to meet your unique needs!

🌟 Machines You'll Love to Pair With: 📢 Heads Up: While these aren't the ONLY machines that are compatible with our 16mm Diameter lens tube for CO2 Laser Lens, they're some of the crowd favorites.

Best when used with:

  • Brand - OEM: Omtech
  • Machine: K40 40 watt

🔍 Features:

  • 📏 Tube Dimensions: Tubes are just 23mm long to perfectly fit your Cloudray K type heads.
  • 💦 Easy Clean Lens Assembly: Clean your lens without ever having to touch it!
  • 🎯 Stress-Free Focusing: Lens is delicately suspended in the tube by glue for optimal, stress-free focusing.

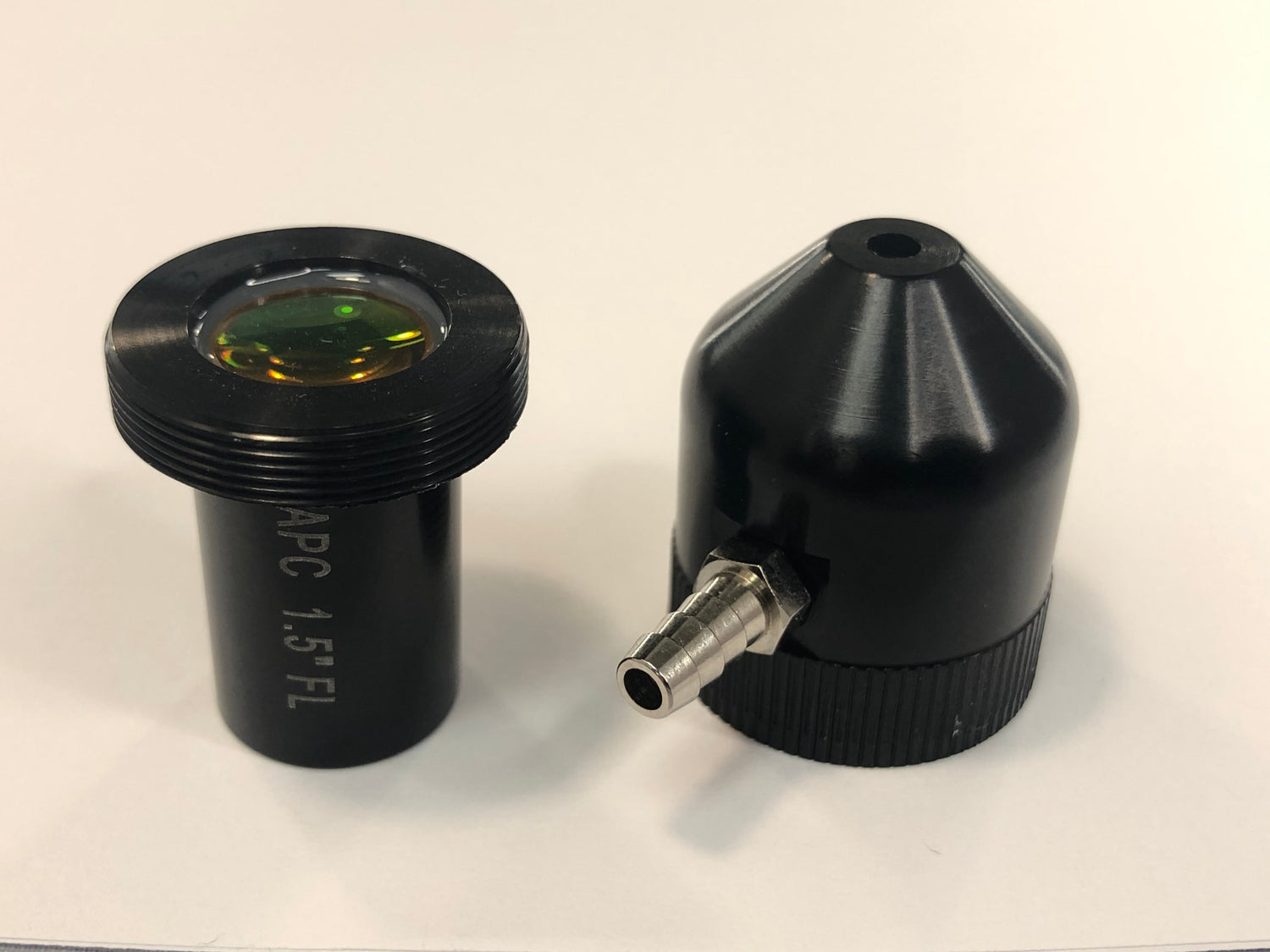

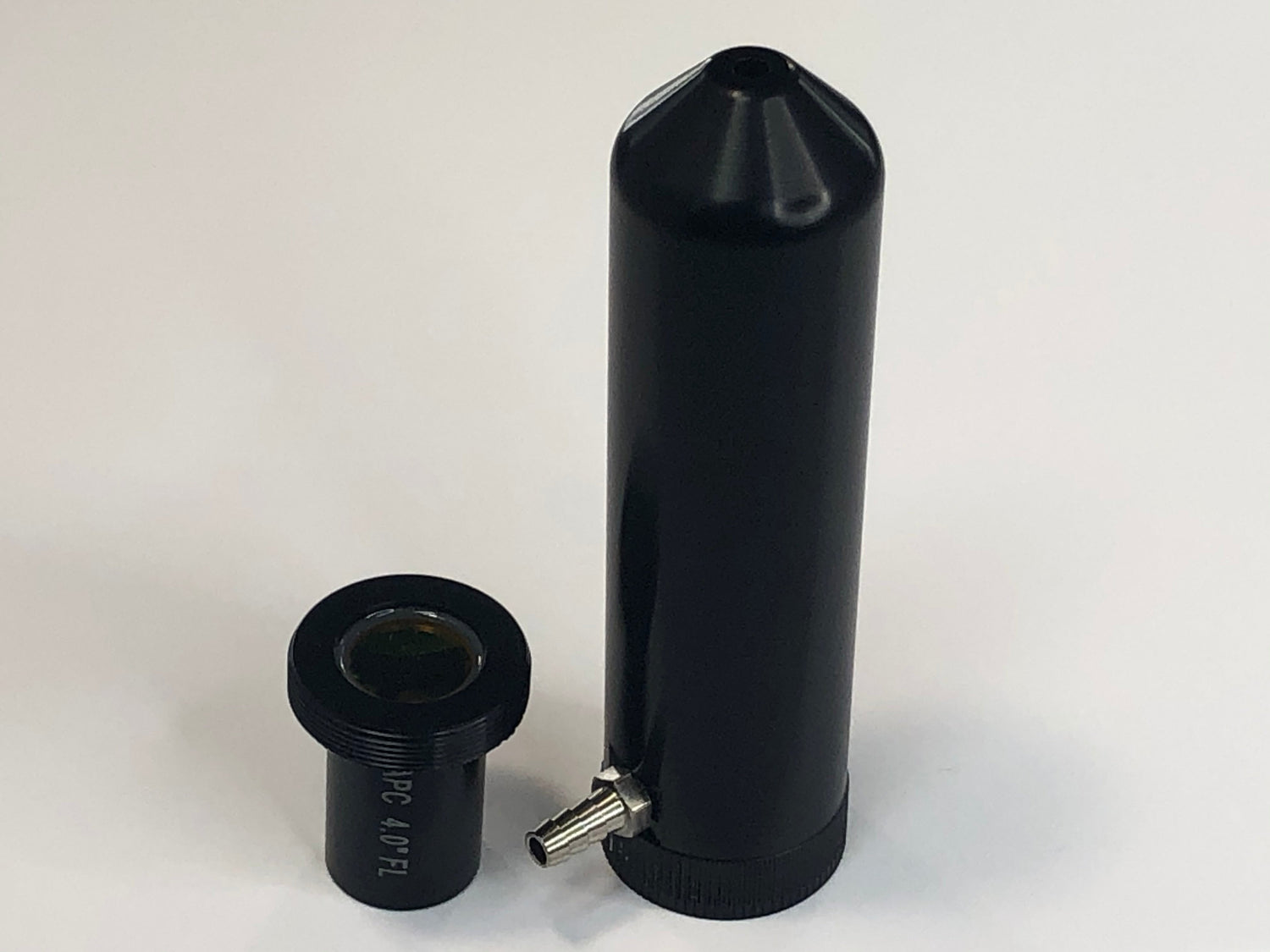

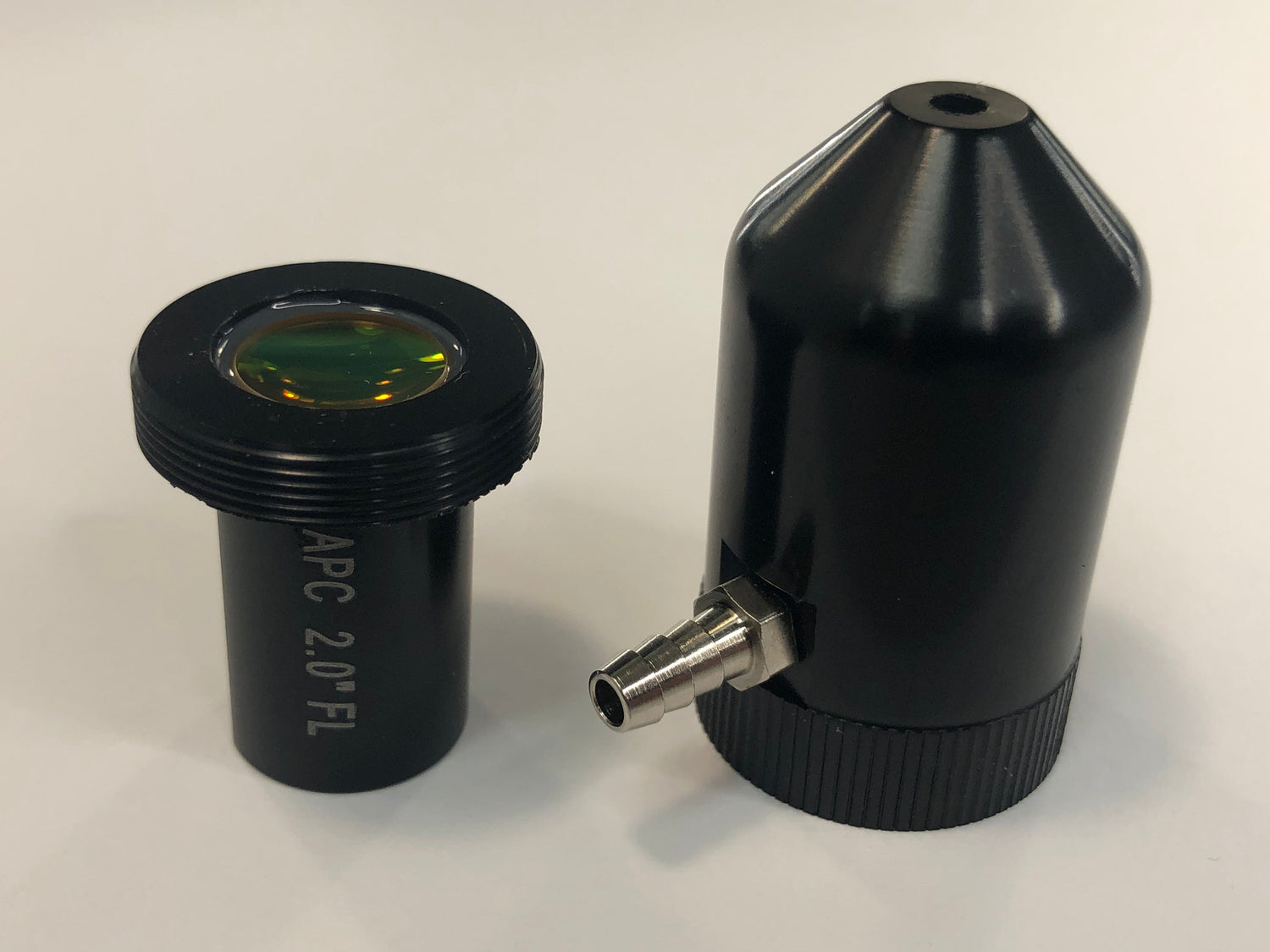

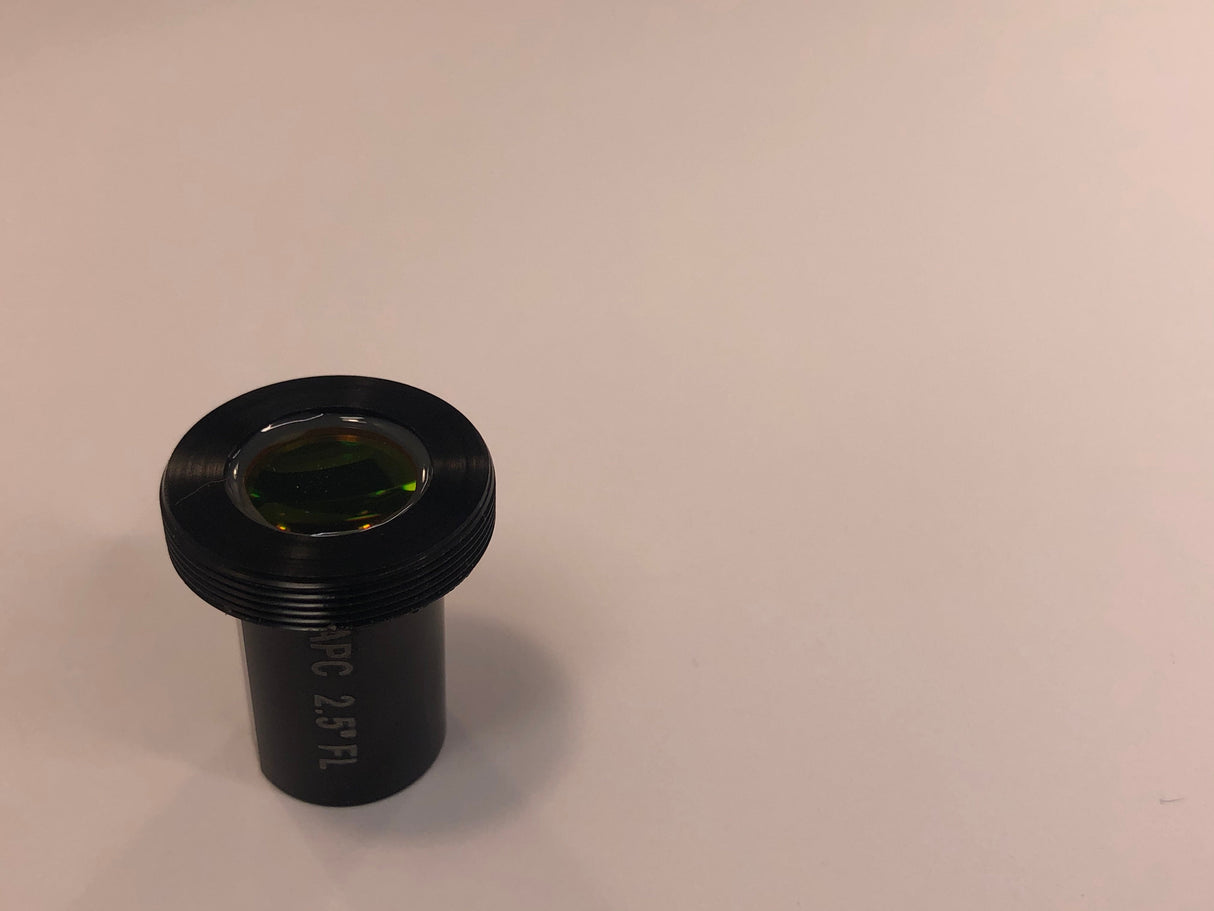

  • 📐 Select Focal Length: Choose from 38.1mm(1.5"), 50.8mm(2.0"), 63.5mm(2.5"), or 101.6mm(4.0") focal lengths.

📹 How-To: Watch our video guide to select the correct glued lens tube for your machine.

⚙️ Specifications:

  • APC holds a +/- .15mm(.006") tolerance on focal length for all our lenses.
  • The distance from the front of the nozzle to the perfect focal point is 10.5mm (equivalent to the length of a AAA battery).

👨‍🔧 Professional Mounting: We highly recommend allowing us to mount your lens for you. We adhere to the highest standards and ensure your lens is mounted in the best possible environment.

⚠️ Disclaimer: Please read all instructions and watch our how-to video before installation. Misuse or incorrect installation is not covered under warranty.

🔥 Why Wait? Upgrade Your Machine Today! 🔥

#UpgradeYourMachine #PrecisionFocusing #EasyClean #CloudrayKTypeHeads

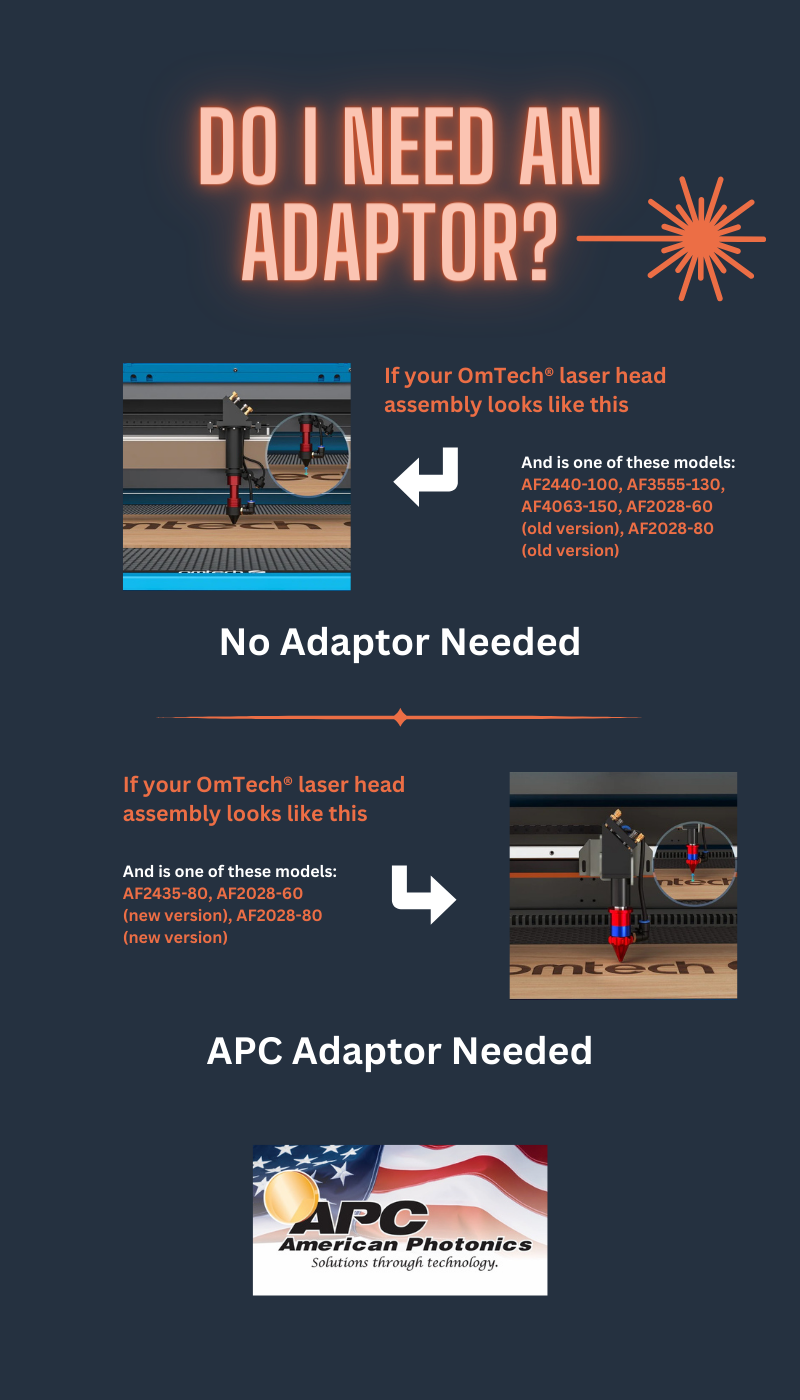

*Please let us know your OmTech machine model so we can determine if you need an adaptor to fit your laser head.

Watch video to select the correct glued lens tube for your machine.

APC holds a +/- .15mm(.006") tolerance on focal length on all of our lenses.

The the distance to from the front of the nozzle to the perfect focal point is 10.5mm (the same as a AAA battery)

Please allow us to mount your lens for you to the highest standards, in the best possible environment.
