Find the Right Product for Your Machine

American Photonics  |  SKU: PCTEC-FS-01-F125L7

P0591 - MEN Lens Suitable for Precitec® HPSSL D30 F125

Regular price $139.00
Shipping calculated at checkout.


Care information

High care information about CO2 laser lenses, fiber laser protective windows, and
fiber laser lenses is essential to ensure the optimal performance and longevity
of these critical components in laser systems. Here are some key points to consider:

CO2 Laser Lenses:

Cleaning:
Regularly clean CO2 laser lenses to remove dust, debris, and residue. Use a
soft, lint-free cloth or lens cleaning tissue. Avoid using abrasive materials
that may scratch the lens.

Handling:
Always handle CO2 lenses with clean hands or lint-free gloves to avoid transferring oils or contaminants onto the lens surface.

Storage:
Store lenses in a clean, dry, and dust-free environment to prevent damage and
maintain their integrity.

Alignment:
Properly align CO2 lenses within the laser system to ensure efficient laser
beam delivery and focus.

Inspection:
Regularly inspect lenses for signs of damage, scratches, or deterioration.
Replace any damaged or worn lenses promptly.

Fiber
Laser Protective Windows:

Cleaning:
Clean fiber laser protective windows with care to avoid scratches. Use a gentle
cleaning solution and a soft, lint-free cloth.

Protection:
Keep protective windows in place when the laser system is not in use to prevent
contamination and damage.

Replacement:
If protective windows become damaged, replace them immediately to maintain
laser system safety and performance.

Fiber Laser Lenses:

Cleaning:
Clean fiber laser lenses carefully to prevent damage. Use a lens cleaning
solution and a soft, lint-free cloth or lens tissue.

Handling:
Handle fiber laser lenses with care to avoid fingerprints, oils, or scratches
on the lens surface.

Alignment:
Properly align fiber laser lenses to ensure accurate laser beam focusing and
efficient performance.

Inspection:
Regularly inspect fiber laser lenses for signs of wear, damage, or contamination. Replace any compromised lenses promptly.

Environmental Considerations: Be mindful of environmental factors such as temperature and
humidity, as extreme conditions may affect lens performance.

Overall,
maintaining high care and attention to detail when handling, cleaning, and
storing CO2 laser lenses, fiber laser protective windows, and fiber laser
lenses will enhance their longevity and contribute to the smooth and reliable
operation of your laser systems. Always follow the manufacturer's guidelines
and best practices for each specific component to ensure optimal results.

Delivery and Shipping

FOR ITEMS IN STOCK:

Orders placed before 2:00 pm EST/EDT on a business day
(Monday - Friday) will ship the same day.
Orders placed after 2:00 pm EST/EDT may not be be shipped
until the next business day.


Our business hours are Monday to Friday, 9 am-4:30 pm.

Orders placed after business hours will not be processed
until the next business day.

Orders placed during the weekend (Saturday - Sunday) or
holiday will be shipped on the next business day.

All packages are shipped FOB ORIGIN – These shipping terms
are characteristic of a “SHIPMENT CONTRACT” and the seller bears the expense
and risk of putting the goods in the possession of the carrier. Title transfers to the buyer at the point when the goods leave the shipper’s loading dock but reverts back to the seller if the buyer follows the correct procedures of notifying the seller of “breach” by “rightfully revoking cceptance.” Even if “breach” has occurred, the buyer remains responsible for filing “carrier loss
claims.”

Where Precision Meets Quality: Buy with Confidence.
Our CNC Fabrication and ISO Certified Excellence Ensure the Best Product at the Best Price.

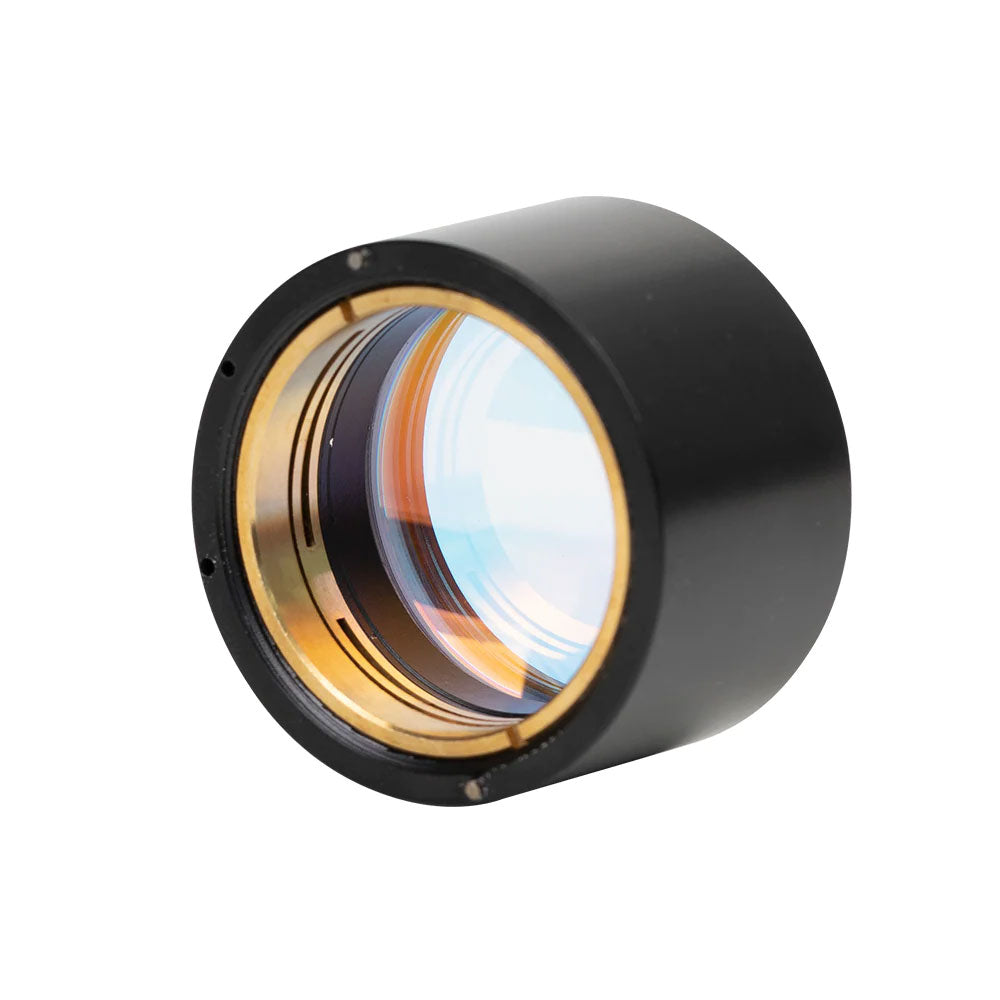

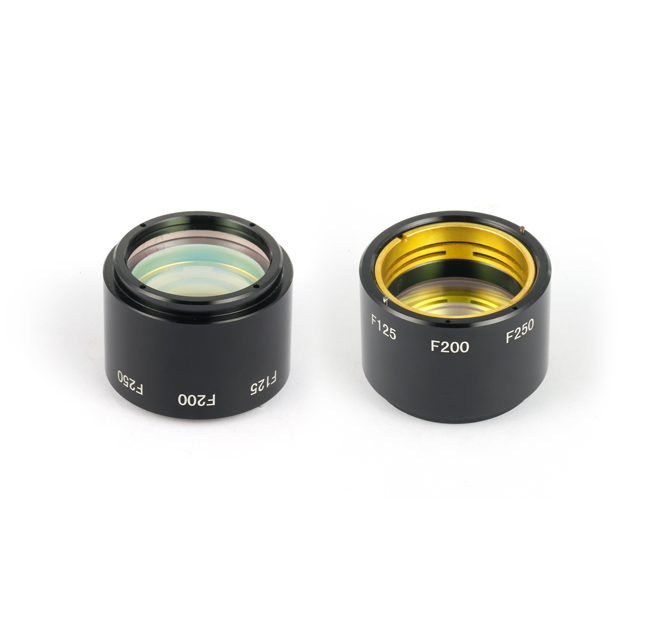

P0591 - MEN Lens Suitable for Precitec® HPSSL D30 F125

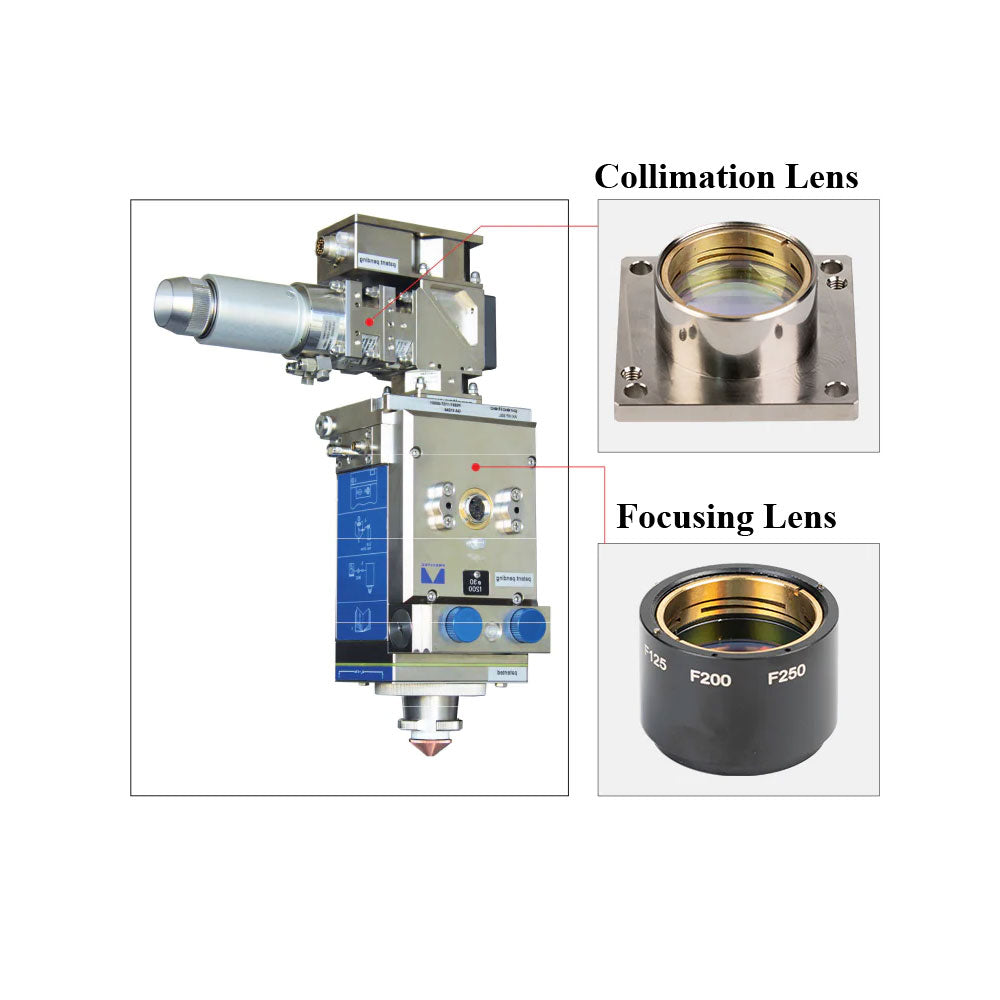

American Photonics provides high-quality fiber replacement parts for Precitec® cutting machines, engineered for optimal performance in LightCutter systems.

This MEN lens is designed as a compatible replacement for the Precitec® HPSSL cutting head. Manufactured from high-purity fused silica, it ensures exceptional beam quality, thermal stability, and long lifespan.


Delivery Time: 15–20 days depending on availability.
Available Fused Silica Lens Options
  • D30 F150 Focusing Lens ASSY
  • D30 F100 Collimation Lens ASSY for LightCutter
  • DCX Lens D30 F150 AR/AR @ 1064 nm
  • MEN Lens D30 F150 AR/AR @ 1064 nm
  • DCX Lens D30 F100 AR/AR @ 1064 nm
  • MEN Lens D30 F100 AR/AR @ 1064 nm

Product Identifiers
  • OEM Part Number: P0591
  • APC Part Number: PCTEC-FS-01-F125L7
American Photonics offers high-quality Fiber Replacement Parts for Precitec® cutting machines, specifically designed for the LightCutter

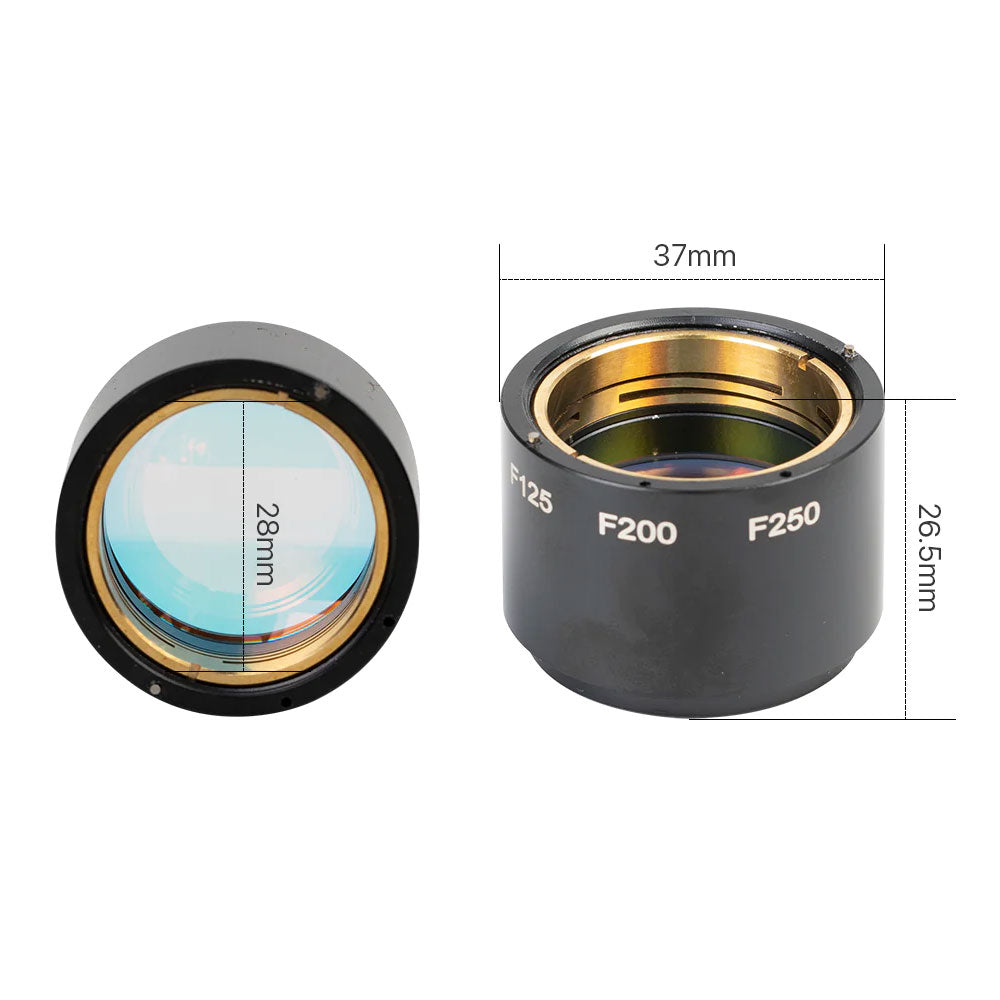

Key Features
  • Diameter: 37 mm
  • Infinity Length (FC): 100 mm
  • Focal Length (FF): 150 mm or 200 mm
  • NA max: 0.13

Compatible Fiber Replacement Parts
  • Fused Silica D37 F200 Focusing Lens ASSY – 15 kW Pro 2.0
  • Fused Aspheric Lens D37 F100 Collimation Lens ASSY – 15 kW Pro 2.0
  • DCX Lens D37 F200 AR/AR @ 1064 nm – 15 kW
  • MEN Lens D37 F200 AR/AR @ 1064 nm – 15 kW
  • Aspheric Lens D37 F100 AR/AR @ 1064 nm – 15 kW

Compatible With: Collimation Lens P0591-1186-00001

Fused Silica D37 F200 Focusing Lens ASSY part# P0595-70900

Why Choose American Photonics?

Our replacement parts are engineered for durability and precision. Each component is designed to maintain high cutting efficiency and ensure consistent performance for Precitec® LightCutter systems.


Installation & Care
🔧 Installation Steps
  1. Power off and unplug the laser machine.
  2. Carefully remove the existing lens assembly.
  3. Insert the new lens assembly and ensure proper seating.
  4. Secure fasteners without overtightening.
  5. Restore power and run test cuts to verify alignment.

🧼 Lens Care Guidelines
  • Inspect regularly for dust, debris, or contamination.
  • Clean only with lint-free cloths or approved lens-cleaning materials.
  • Handle lenses with clean gloves to prevent smudging.
  • Store spares in clean, dust-free packaging.
  • Avoid prolonged exposure to excessive heat.

Proper care ensures optimal cutting performance and extends lens life.


Quality Assurance

American Photonics maintains strict quality control to ensure our replacement parts meet the highest industry standards.


Disclaimers

Parts Disclaimer: All parts sold are manufactured by or for American Photonics.
Trademark Disclaimer: All manufacturer names and trademarks belong to their respective owners. Used only for reference and compatibility.
Installation Disclaimer: Installation should be performed by qualified professionals. American Photonics is not responsible for damages caused by improper installation or misuse.
