Choosing the correct focusing lens is one of the most important decisions when designing or maintaining an optical system. Whether you're building a laser machine, upgrading industrial equipment, performing laboratory research, or developing an imaging system, the right lens directly impacts beam quality, cutting performance, image resolution, and overall system efficiency.
At American Photonics, we manufacture precision optical lenses for CO₂ lasers, fiber laser systems, infrared optics, scientific instruments, and OEM applications. This guide explains how focusing lenses work, the different lens types available, and how to select the best lens for your application.
What Is a Focusing Lens?
A focusing lens is an optical component that bends (refracts) incoming light so the rays converge or diverge in a controlled manner.
The lens shape and optical material determine how light behaves after passing through the lens.
Focusing lenses are used in:
- CO₂ laser cutting
- Laser engraving
- Fiber laser systems
- Scientific instruments
- Medical devices
- Optical sensors
- Imaging systems
- Industrial automation
How Do Focusing Lenses Work?
When light travels from one material into another, its speed changes.
This causes the light to bend—a phenomenon known as refraction.
The amount of bending depends on:
- Lens curvature
- Lens material
- Refractive index
- Light wavelength
Using Snell's Law, engineers can accurately predict how the lens focuses light.

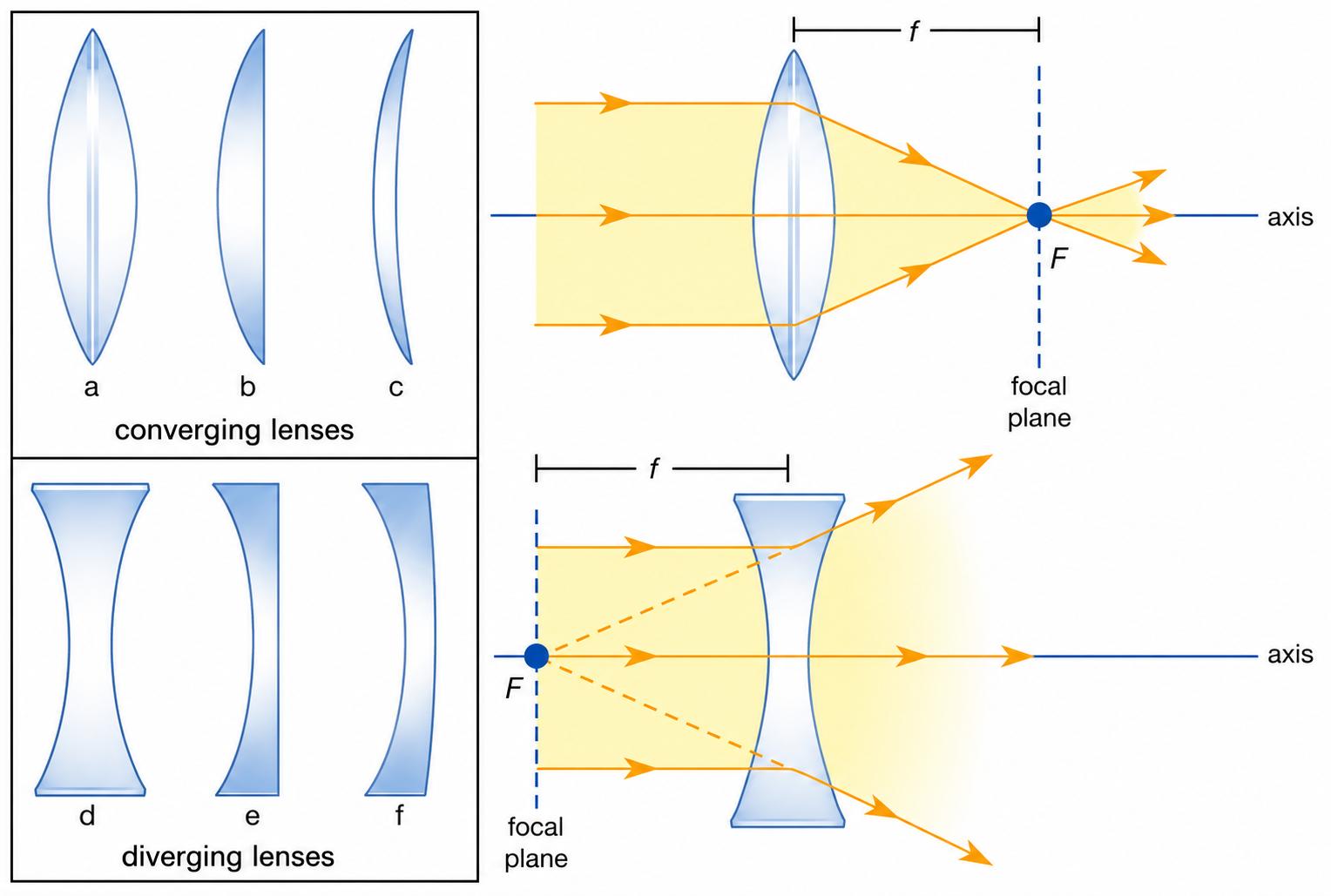

Types of Focusing Lenses
Convex Lens
A convex lens is thicker in the center than at the edges.
It converges incoming light into a single focal point.
Best for
- Laser focusing
- Cameras
- Microscopes
- Imaging systems
- Optical sensors
Concave Lens
A concave lens is thinner in the center and thicker around the edges.
Instead of focusing light, it spreads or diverges the beam.
Common Applications
- Beam expanders
- Vision correction
- Laser beam shaping
- Optical alignment
Plano-Convex (PCX) Lens
Plano-convex lenses have one flat surface and one curved surface.
They are among the most common optical lenses because they provide excellent focusing with minimal optical loss when properly oriented.
Typical Applications
- CO₂ laser systems
- Laser cutting
- Laser engraving
- Projection systems
- Scientific instruments
Plano-Concave (PCV) Lens
Plano-concave lenses feature one flat side and one inward-curved surface.
These lenses increase beam diameter while reducing beam convergence.
Common Uses
- Beam expansion
- Optical testing
- Scientific equipment
- Laser beam shaping
Meniscus Lens
A meniscus lens has one convex surface and one concave surface.
Depending on the radii of curvature, it may have either positive or negative focal length.
Applications
- High-power laser optics
- Beam correction
- Imaging systems
- Custom optical assemblies
Understanding Focal Length
Focal length is the distance between the lens and the point where light comes into focus.
For CO₂ laser systems, focal length directly affects:
| Short Focal Length | Long Focal Length |
|---|---|
| Smaller spot size | Larger spot size |
| Higher engraving detail | Better thick-material cutting |
| Shallower depth of focus | Greater depth of focus |
| Faster engraving | Improved cutting stability |
Common CO₂ laser focal lengths include:
- 1.5" (38.1 mm)
- 2.0" (50.8 mm)
- 2.5" (63.5 mm)
- 4.0" (101.6 mm)
- 5.0" (127 mm)
- 7.5" (190.5 mm)
Choosing the Right Lens Material
Different optical materials are designed for different wavelengths.
| Material | Typical Wavelength | Common Applications |
|---|---|---|
| ZnSe | 10.6 µm | CO₂ lasers |
| Fused Silica | UV–NIR | Fiber lasers |
| Sapphire | UV–IR | Harsh environments |
| Calcium Fluoride | UV–IR | Scientific optics |
| Germanium | Infrared | Thermal imaging |
| Silicon | Infrared | High-power laser optics |
Optical Aberrations
No optical system is perfect.
Lens aberrations can reduce image quality and beam performance.
Common aberrations include:
Chromatic Aberration
Different wavelengths focus at different locations.
Spherical Aberration
Light near the edge of the lens focuses differently than light passing through the center.
Astigmatism
The beam focuses differently along different axes.
Premium optical designs reduce these effects through:
- Precision polishing
- High-quality optical coatings
- Multiple optical elements
- Aspheric surfaces
How to Choose the Best Focusing Lens
When selecting a lens, consider:
- Laser wavelength
- Beam diameter
- Required focal length
- Lens diameter
- Optical material
- Laser power
- Coating type
- Mount compatibility
- Environmental conditions
If you're replacing a CO₂ laser lens, confirm:
- Diameter
- Thickness
- Focal length
- Lens orientation
- Lens tube compatibility
Why Choose American Photonics?
American Photonics manufactures precision optical components for industrial, scientific, medical, aerospace, defense, and OEM applications.
We offer:
- Precision ZnSe focusing lenses
- Plano-convex lenses
- Plano-concave lenses
- Meniscus lenses
- Custom optical manufacturing
- Laser optics engineering support
- High-performance AR coatings
- ISO-quality manufacturing
- Custom diameters and focal lengths
- OEM production
Whether you need a replacement CO₂ laser lens or a custom optical solution, our engineering team can help identify the right component for your application.
Frequently Asked Questions
What does a focusing lens do?
A focusing lens bends incoming light so it converges or diverges at a controlled point, allowing lasers and optical systems to produce precise beam sizes and sharp focus.
What is the best lens for a CO₂ laser?
ZnSe (Zinc Selenide) lenses are the industry standard for 10.6 µm CO₂ lasers because they provide excellent infrared transmission and durability.
Which focal length should I choose?
- 1.5"–2.0": Fine engraving and detailed work
- 2.5": General-purpose cutting and engraving
- 4.0"–5.0": Thick materials and deep cutting
Can American Photonics manufacture custom lenses?
Yes. We manufacture custom optical lenses in a variety of materials, diameters, focal lengths, coatings, and tolerances for OEM and industrial applications.
What industries use focusing lenses?
Focusing lenses are used in laser cutting, medical equipment, aerospace, defense, semiconductor manufacturing, scientific research, imaging systems, and industrial automation.
