Ceramic Nozzle Holder for Trumpf® Laser Cutting Machines
Ceramic Nozzle Holder for Trumpf® Laser Cutting Machines ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Care information
Care information
High care information about CO2 laser lenses, fiber laser protective windows, and
fiber laser lenses is essential to ensure the optimal performance and longevity
of these critical components in laser systems. Here are some key points to consider:
CO2 Laser Lenses:
Cleaning:
Regularly clean CO2 laser lenses to remove dust, debris, and residue. Use a
soft, lint-free cloth or lens cleaning tissue. Avoid using abrasive materials
that may scratch the lens.
Handling:
Always handle CO2 lenses with clean hands or lint-free gloves to avoid transferring oils or contaminants onto the lens surface.
Storage:
Store lenses in a clean, dry, and dust-free environment to prevent damage and
maintain their integrity.
Alignment:
Properly align CO2 lenses within the laser system to ensure efficient laser
beam delivery and focus.
Inspection:
Regularly inspect lenses for signs of damage, scratches, or deterioration.
Replace any damaged or worn lenses promptly.
Fiber
Laser Protective Windows:
Cleaning:
Clean fiber laser protective windows with care to avoid scratches. Use a gentle
cleaning solution and a soft, lint-free cloth.
Protection:
Keep protective windows in place when the laser system is not in use to prevent
contamination and damage.
Replacement:
If protective windows become damaged, replace them immediately to maintain
laser system safety and performance.
Fiber Laser Lenses:
Cleaning:
Clean fiber laser lenses carefully to prevent damage. Use a lens cleaning
solution and a soft, lint-free cloth or lens tissue.
Handling:
Handle fiber laser lenses with care to avoid fingerprints, oils, or scratches
on the lens surface.
Alignment:
Properly align fiber laser lenses to ensure accurate laser beam focusing and
efficient performance.
Inspection:
Regularly inspect fiber laser lenses for signs of wear, damage, or contamination. Replace any compromised lenses promptly.
Environmental Considerations: Be mindful of environmental factors such as temperature and
humidity, as extreme conditions may affect lens performance.
Overall,
maintaining high care and attention to detail when handling, cleaning, and
storing CO2 laser lenses, fiber laser protective windows, and fiber laser
lenses will enhance their longevity and contribute to the smooth and reliable
operation of your laser systems. Always follow the manufacturer's guidelines
and best practices for each specific component to ensure optimal results.
Delivery and Shipping
Delivery and Shipping
FOR ITEMS IN STOCK:
Orders placed before 2:00 pm EST/EDT on a business day
(Monday - Friday) will ship the same day.
Orders placed after 2:00 pm EST/EDT may not be be shipped
until the next business day.
Our business hours are Monday to Friday, 9 am-4:30 pm.
Orders placed after business hours will not be processed
until the next business day.
Orders placed during the weekend (Saturday - Sunday) or
holiday will be shipped on the next business day.
All packages are shipped FOB ORIGIN – These shipping terms
are characteristic of a “SHIPMENT CONTRACT” and the seller bears the expense
and risk of putting the goods in the possession of the carrier. Title transfers to the buyer at the point when the goods leave the shipper’s loading dock but reverts back to the seller if the buyer follows the correct procedures of notifying the seller of “breach” by “rightfully revoking cceptance.” Even if “breach” has occurred, the buyer remains responsible for filing “carrier loss
claims.”
Ceramic Nozzle Holder for Trumpf® Laser Cutting Machines
Short Description

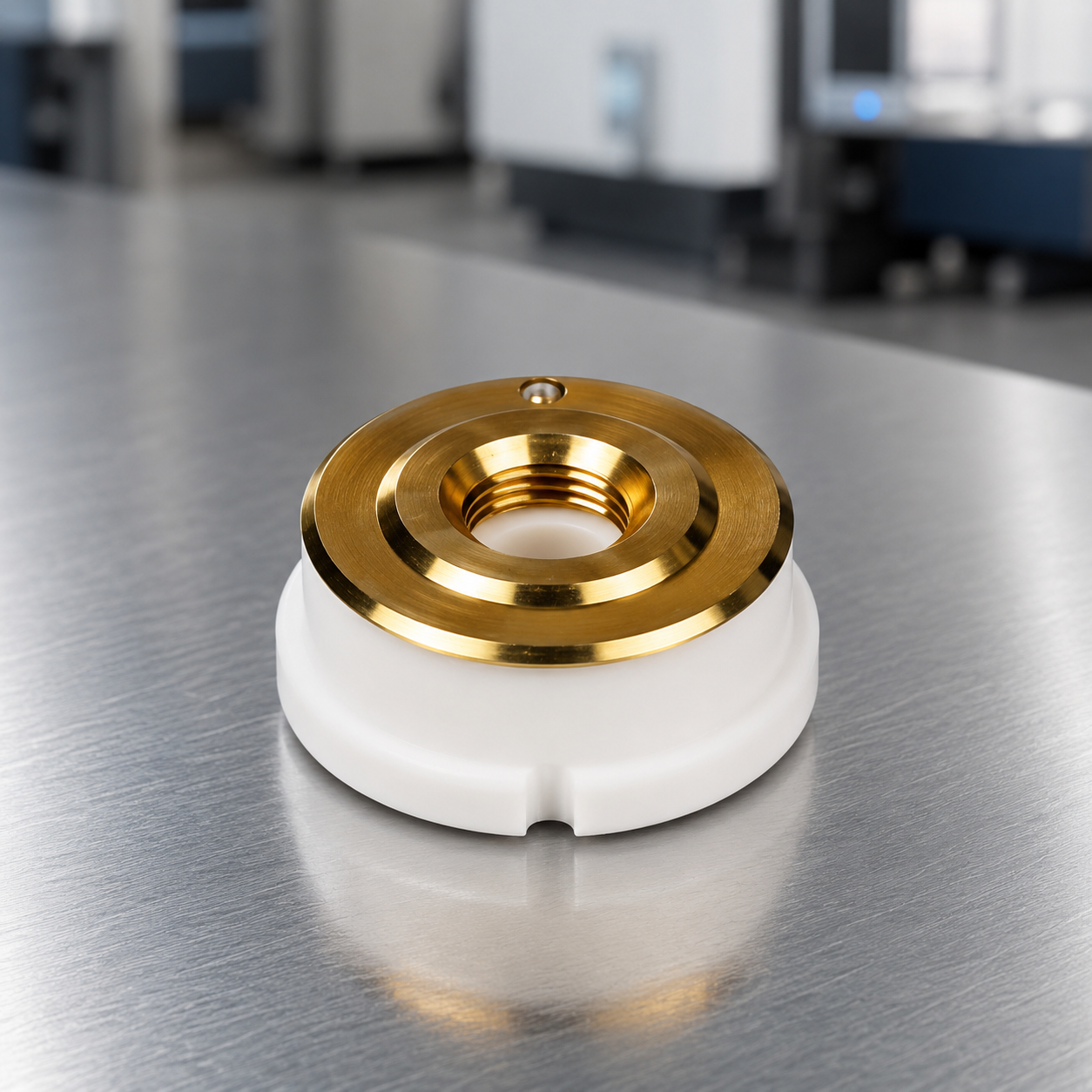

The 0258809 Ceramic Nozzle Holder is a precision-engineered replacement part designed for select Trumpf® TruLaser CO₂ and Fiber Laser cutting systems. Manufactured in the USA using advanced CNC machining technology, this ceramic nozzle holder provides reliable nozzle alignment, electrical insulation, and long-term durability in demanding laser cutting environments. Compatible with multiple TruLaser series machines and interchangeable with OEM part numbers 0243839, 243839, 0247894, 247894, and 0258809, 258809.
Product Overview
Maintain cutting accuracy and reliable laser performance with the 0258809 Ceramic Nozzle Holder, a high-quality replacement ceramic designed for use with compatible Trumpf® laser cutting heads.
This ceramic nozzle holder plays a critical role in supporting proper nozzle positioning while providing electrical insulation between the cutting head and nozzle assembly. Precision manufacturing helps ensure consistent performance, stable cutting conditions, and dependable operation in industrial laser cutting applications.
American Photonics replacement ceramics are manufactured using automated CNC technology and are trusted by laser professionals and maintenance teams worldwide.
Technical Benefits
- Precision-machined ceramic construction for accurate nozzle positioning
- Provides electrical insulation within the cutting head assembly
- Designed for demanding industrial laser cutting environments
- Compatible with multiple Trumpf® TruLaser systems
- Manufactured using advanced CNC machining technology
- Suitable for high-power CO₂ laser cutting applications
- Durable construction for long service life
Applications
Ideal for:
- Industrial sheet metal cutting
- CO₂ laser cutting systems
- Fiber laser cutting systems
- OEM maintenance and repair
- Preventive maintenance programs
- Replacement of worn or damaged ceramics
Compatible Machines
Suitable for use with:
- TruLaser Series 1000
- TruLaser Series 2000
- TruLaser Series 3000 (Square Cutting Head)
- TruLaser Series 5000 (Square Cutting Head)
- TruLaser Series 7000 Fiber
- TruLaser Series 7000 (Square Cutting Head)
- TruLaser Series 8000 (Square Cutting Head)
OEM & Cross Reference Part Numbers
| Reference Type | Part Number |
|---|---|
| APC Part Number | 0243839 |
| OEM Part Number | 0258809 |
| Old Reference Numbers | 0243839, 0247894, 243839, 258809, 247894 |
Key Features
- Compatible with Trumpf® laser cutting systems
- Precision ceramic nozzle holder design
- CNC-manufactured in the USA
- Supports accurate nozzle alignment
- Provides electrical insulation
- Suitable for CO₂ and Fiber laser cutting machines
- OEM replacement component
- Sold individually
Technical Specifications
| Parameter | Value |
| Product Type | Ceramic Nozzle Holder |
| Material | Ceramic |
| OEM Manufacturer | Trumpf® |
| OEM Reference PN | 0258809 |
| APC Part Number | 0243839 |
| Quantity | 1 |
| Manufacturing Method | Automated CNC Technology |
| Country of Origin | USA |
| Compatible Machine Types | TruLaser Series 1000, 2000, 3000, 5000, 7000, 8000 |
| Application | Laser Cutting Systems |
Frequently Asked Questions
What does a ceramic nozzle holder do?
A ceramic nozzle holder helps position the cutting nozzle while providing electrical insulation within the laser cutting head assembly. Proper ceramic condition is important for maintaining cut quality and sensor performance.
Which Trumpf® machines use this ceramic?
This ceramic is suitable for select TruLaser Series 1000, 2000, 3000, 5000, 7000 Fiber, and 8000 machines using compatible square cutting heads.
Is this an OEM Trumpf® part?
No. This is a high-quality American Photonics replacement part designed for compatibility with the referenced OEM systems.
Is this ceramic manufactured in the USA?
Yes. American Photonics manufactures this component using automated CNC technology in the United States.
What part numbers does this replace?
This ceramic cross-references OEM part numbers 0258809, 0243839, 0247894, 243839, 258809, and 247894.
Disclaimer
All parts advertised for sale are manufactured by or for American Photonics.
Amada®, Bystronic®, Cincinnati®, Mazak®, Mitsubishi®, Laserlab®, Laserdyne®, Prima®, Precitec®, Strippit®, Trumpf®, and any other trademarks not owned by APC are registered trademarks of their respective owners. American Photonics is an independent company and is not affiliated with the manufacturers listed above. Manufacturer names, trademarks, and part numbers are used solely for identification, reference, and compatibility purposes.
