APC Focus Lens Dia. 1.5" (38.1 mm) × 5.0" FL (127 mm), ET 0.291" (7.4 mm) – Compatible with Trumpf® CO₂ Laser (Ref. 088114 / 88114)

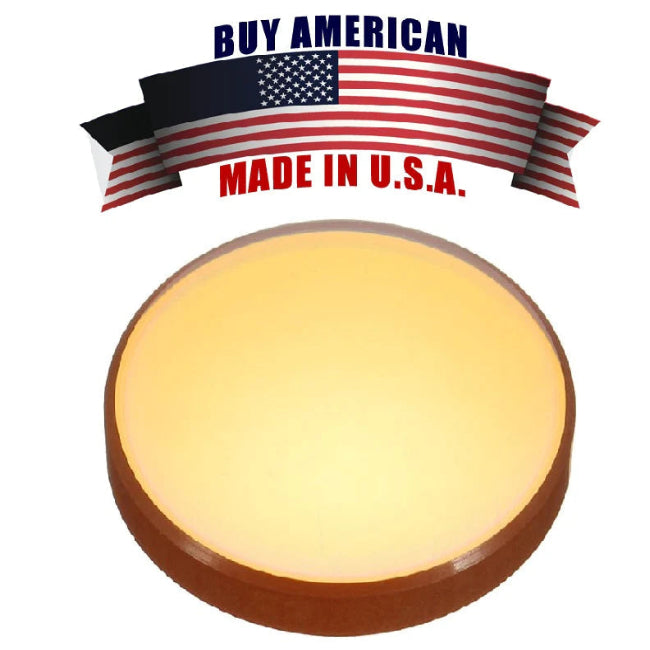

This APC Zinc Selenide (ZnSe) focus lens is engineered for reliable compatibility with Trumpf® CO₂ laser cutting systems. With a 1.5-inch diameter and 5.0-inch (127 mm) focal length, this lens provides accurate focus and efficient laser energy transmission at the 10.6 µm CO₂ wavelength. Ideal for laser maintenance, service replacement, and production use, this optic supports consistent cutting performance and uptime.
Important: APC focus lenses are manufactured to meet high optical standards; reference part numbers are provided for compatibility identification only and are not OEM parts.
Typical lead time is 1 business day, depending on availability.
Technical Specifications
| Specification | Value |
| Material | Laser-grade Zinc Selenide (ZnSe) |
| Diameter | 1.5" (38.1 mm) |
| Focal Length | 5.0" (127.0 mm) |
| Edge Thickness (ET) | 0.291" (7.4 mm) |
| AR Coating | Anti-Reflective, optimized for 10.6 µm |
| Laser Type | CO₂ |
| Wavelength | 10.6 µm |
| Working Distance | 4.783" (121.5 mm) |
Note: This optic is designed for CO₂ lasers and is not suitable for fiber laser wavelengths
Available Options
|
APC Part Numbers |
OEM / Reference Part Number |
| LM-38.1-Z-127.0-7.40-AR | Trumpf®: 088114, 88114 |
Typical Applications
- CO₂ Laser cutting of mild steel, stainless steel, aluminum
- Industrial sheet metal fabrication
- Laser maintenance and service replacement
- Production environments requiring consistent focus quality
What’s Included
- 1 × APC Focus Lens Ø 1.5" (38.1 mm), FL 5.0" (127 mm), ET 0.291" (7.4 mm)
- Protective packaging suitable for optics handling and storage
Features & Benefits
Features
- Anti-reflective coating optimized for 10.6 µm CO₂ laser wavelength
- Low bulk absorption for efficient energy transmission
- Precision polished clear aperture
- Reference PN coverage for easier part identification
Benefits
- Consistent Optical Performance: Stable focus for repeatable cuts
- Reliable Replacement: Drop-in compatibility with Trumpf® CO₂ laser cutting systems
- Reduced Thermal Stress: Low absorption helps minimize lens heating
- Wide Reference Support: Easier identification of compatible part numbers
Compatibility
Compatible with Trumpf® CO₂ laser cutting machines that utilize a 1.5" diameter, 5.0" focal length focus lens. Typical series may include:
- TruLaser® Series 1000
- TruLaser® Series 2000/3000
- TruLaser® Series 5000
- TruLaser® Tube Series (where this focal length is used)
Confirm specific machine head configuration before ordering.
FAQs
Q: Is this lens compatible with fiber laser machines?
A: No. This lens is designed for CO₂ lasers operating at 10.6 µm and is not suitable for fiber laser wavelengths.
Q: Does this part replace Trumpf® OEM 088114 or 88114?
A: This APC focus lens is compatible with systems that use those reference numbers. OEM names are used for identification and compatibility purposes only.
Q: What does “ET” mean?
A: ET stands for Edge Thickness, the thickness of the lens at its outer edge, important for mounting fit and optical alignment.
Q: How should I clean and handle the lens?
A: Handle with clean, lint-free gloves; store in a dry, dust-free container; clean with proper lens tissue or swabs and appropriate optics cleaner to avoid scratches or contamination.
Q: What does “Working Distance” imply?
A: Working Distance is the distance from the lens to the focal plane when installed, here approximately 4.783" (121.5 mm).
